In NTI COMANAGE you have the ability to enrich your objects with data, and then push that data directly into your Revit model. This helps ensure everything stays connected and up-to-date across your workflow.

Set up the export mapping in COMANAGE

1. Go to Models in the Project Home section.
2. Click the three-dot icon next to your source file.
3. Select Export Settings.
4. A dialog will open.

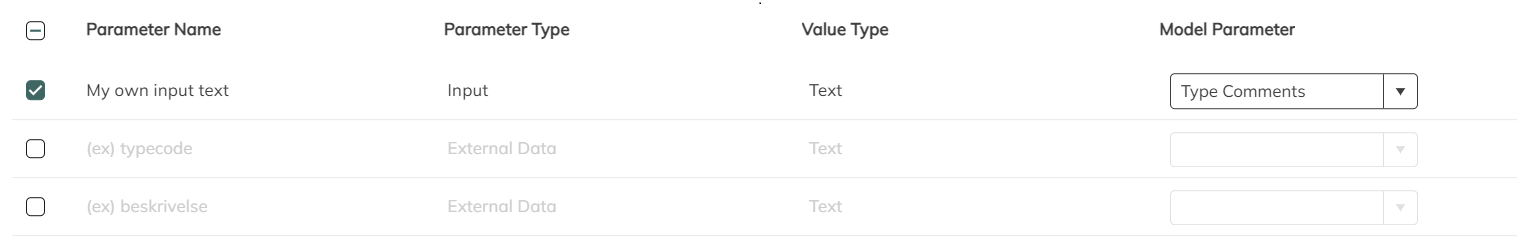

5. Map your COMANAGE properties to specific Revit parameters.
   • You can map values from Input, External, Reference and Model Data properties.
   • Note: Model Data properties are always mapped to the same Revit parameter that the Model Data property is based on. Read more here.

Update your Revit file in Revit

1. On the Add-Ins panel in Revit, click NTI COMANAGE Synchronize.
2. You will be prompted to sign in. Use the same credentials as you use for COMANAGE.

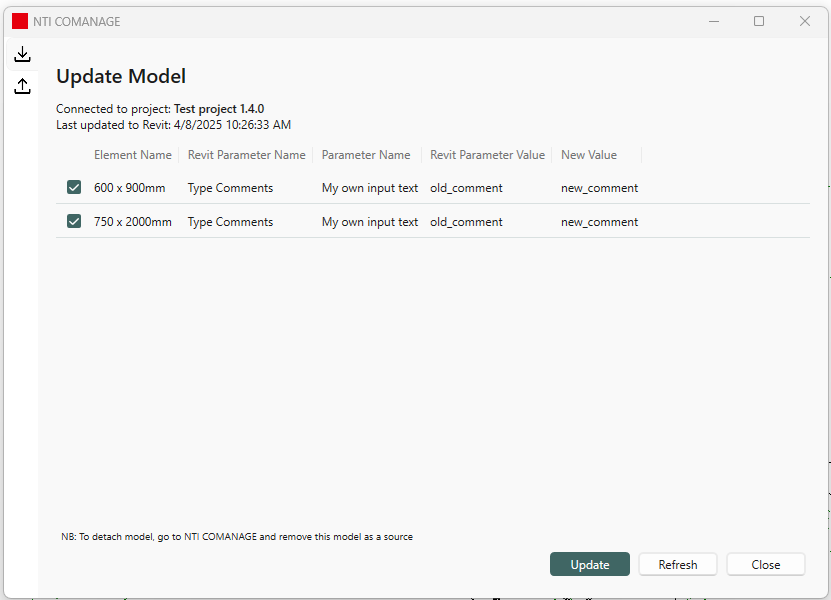

3. An Update Model dialog will open.

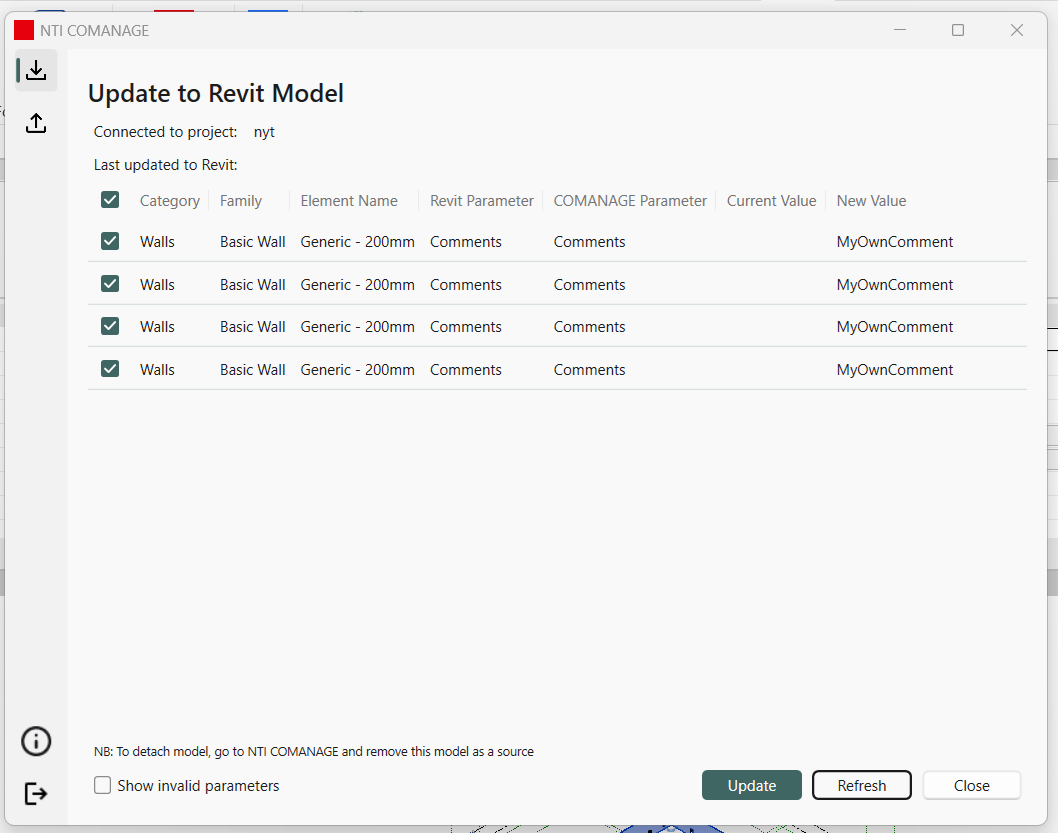

4. In the update dialog, you can view:
   1. The Element Names of the affected types.
   2. The Revit parameter names and their current values.
   3. The COMANAGE property names and the values, that you are about to stamp into your Revit model.
5. While the update dialog is open, you can add values to your objects or modify export settings in COMANAGE and then click Refresh to display the latest configurations.
6. Once everything is set, click Update to write values from COMANAGE into your Revit file.
7. You can now Upload the categories again to synchronize the model with your COMANAGE project.

Where: HOME / <project name> / PROJECT HOME / Models
