Filtering objects

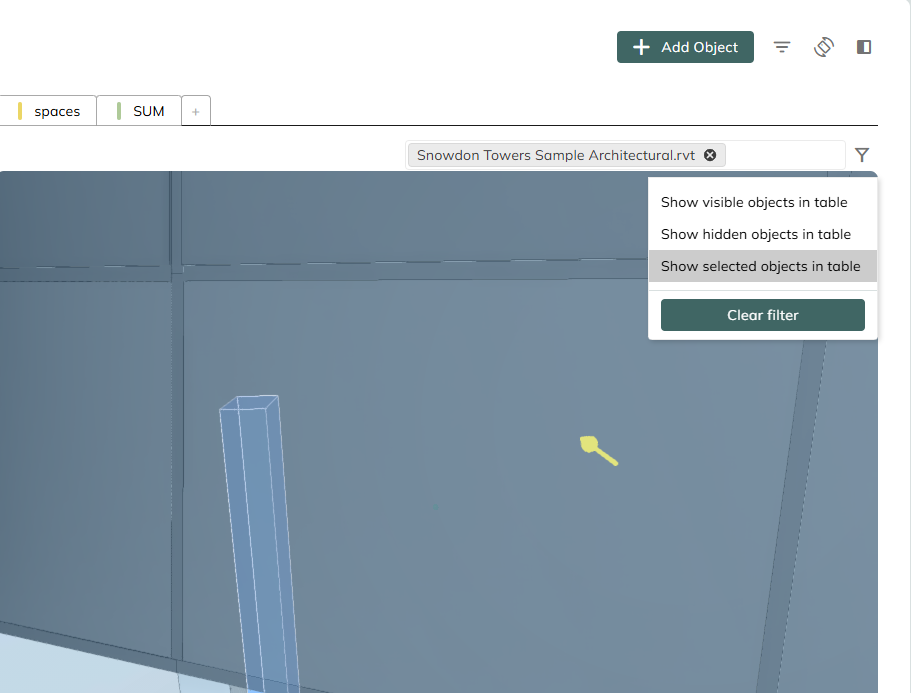

You can filter the object table by manipulating elements in the model. Show, hide, or select elements in the model, then click the filter icon above the model viewer. The object table will display objects according to your current filter settings.

How to highlight elements in the 3D viewer

Click the three-dot icon of one or multiple source objects in the object table and click Show in Viewer:

•
  • From a Type view, all instances of the selected type(s) will be highlighted in the model.
  • From an Instance view, the instance(s) will be highlighted in the model.

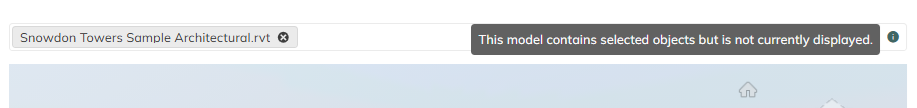

Note: If you try to show elements in a model that is not displayed in the viewer, a notification icon will appear in the model selector field. The hover text reads: 'This model contains selected objects but is not currently displayed.

How to highlight object(s) in the object table

1. Select an instance in the model (displayed in the model viewer):
   • In a Type view, the row corresponding to the type of the instance will be highlighted.
   • In an Instance view, the row of the specific instance will be highlighted.
2. Select multiple instances in the model (displayed in the model viewer):
   • In a Type view, all types represented will be highlighted.
   • In an Instance view, all instances be highlighted.

Viewing sheets

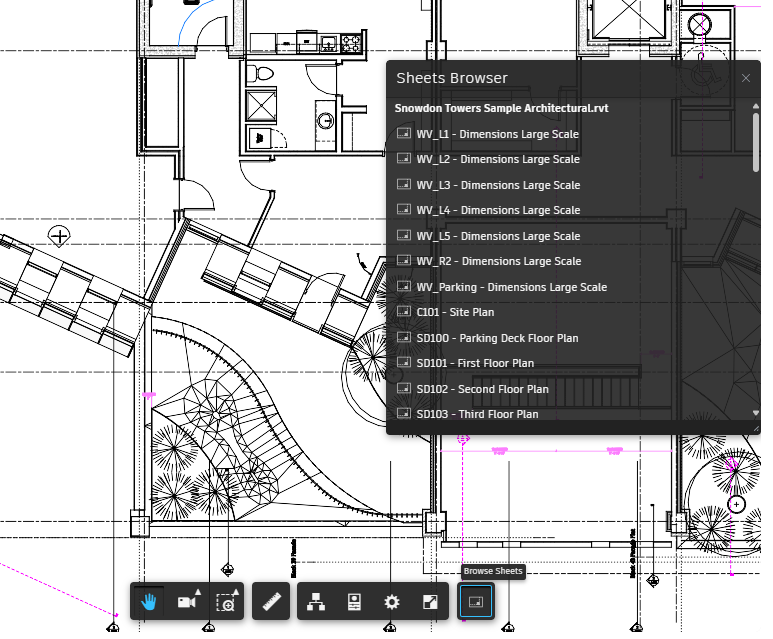

Click the Browse Sheets button in the ACC panel to view the sheets of the Revit file.

Where: HOME / <project name> / OBJECTS / Manage
