On the right side of the object table in the Manage section, a 3D model of your ACC file is displayed. If multiple ACC sources are synchronized, use the Model Selector field to choose which model to display.

💡 3D models are only available for Autodesk Construction Cloud (ACC files) and not for local Revit files.

Placement of the Model Viewer

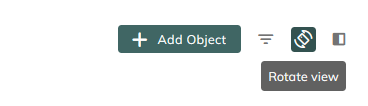

You can choose whether the model viewer appears on the right side or below the object table. Click the Rotate view button located in the top-right corner of the viewer area to toggle between the two placements.

Once selected, Save the changes on the view tab for future sessions.

Hiding the Model Viewer

If you want more space for the object table, you can hide the Model Viewer completely. Click the Show/Hide viewer icon in the upper right corner.

Once hidden, the viewer will remain hidden on the project until you revisit COMANAGE.

Using the Model Viewer in full screen

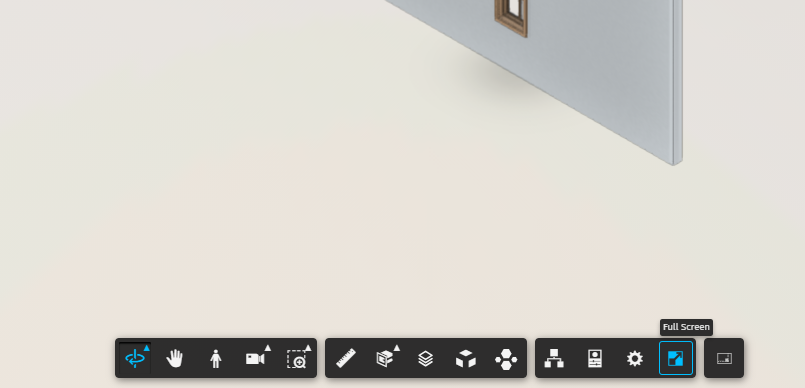

Use the ACC panel to switch the Model Viewer to full screen mode.

Viewing sheets

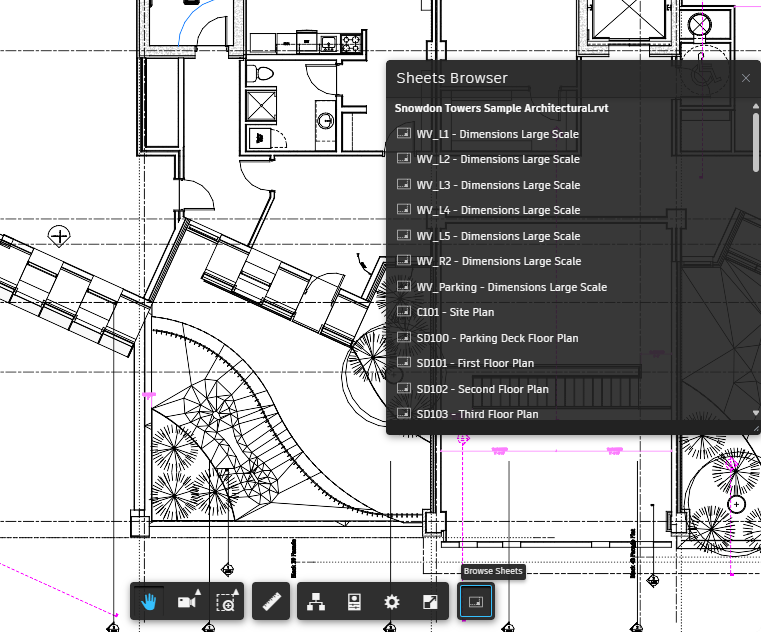

Click the Browse Sheets button in the ACC panel to view the sheets of the Revit file.

How to highlight elements in the 3D viewer

Click the three-dot icon of one or multiple source objects in the object table and click Show in Viewer:

•
  • From a Type view, all instances of the selected type(s) will be highlighted in the model.
  • From an Instance view, the instance(s) will be highlighted in the model.

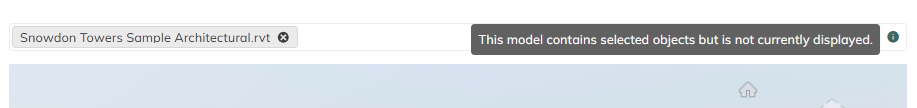

Note: If you try to show elements in a model that is not displayed in the viewer, a notification icon will appear in the model selector field. The hover text reads: 'This model contains selected objects but is not currently displayed.

How to highlight object(s) in the object table

1. Select an instance in the model (displayed in the model viewer):
   • In a Type view, the row corresponding to the type of the instance will be highlighted.
   • In an Instance view, the row of the specific instance will be highlighted.
2. Select multiple instances in the model (displayed in the model viewer):
   • In a Type view, all types represented will be highlighted.
   • In an Instance view, all instances be highlighted.

Where: HOME / <project name> / OBJECTS / Manage
