Yes - with the Sync Status column in the Object table, you can see exactly how objects in your model have changed between synchronizations.
What is the Sync Status column?
The Sync Status column is an internal, system-generated property that shows if an object has been:
Added → Appears in the current model but not in the previous version
Changed → Exists in both versions, but one or more model data parameters have changed
Deleted → Was in the previous version but is missing in the current one
Unchanged → No parameter changes since the last synchronization
The status is shown as color-coded chips for quick visual identification.
Where can I see it?
Available in both Type and Instance views

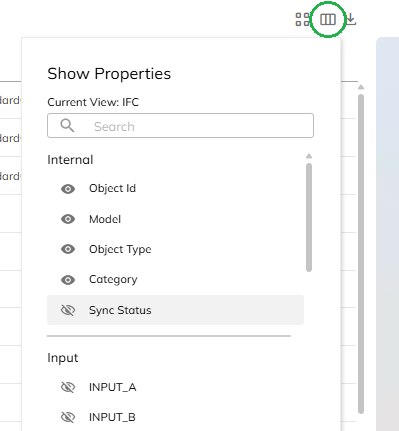

Can be toggled on/off in the Properties selector
How does it work?
Status is calculated when a file is synchronized.
Comparison happens automatically as part of a successful synchronization.
On the first synchronization, all objects will be marked as Added.
Deleted objects remain in the table with the status Deleted until manually removed.
Objects marked as Deleted are not included in count or sum functions.
